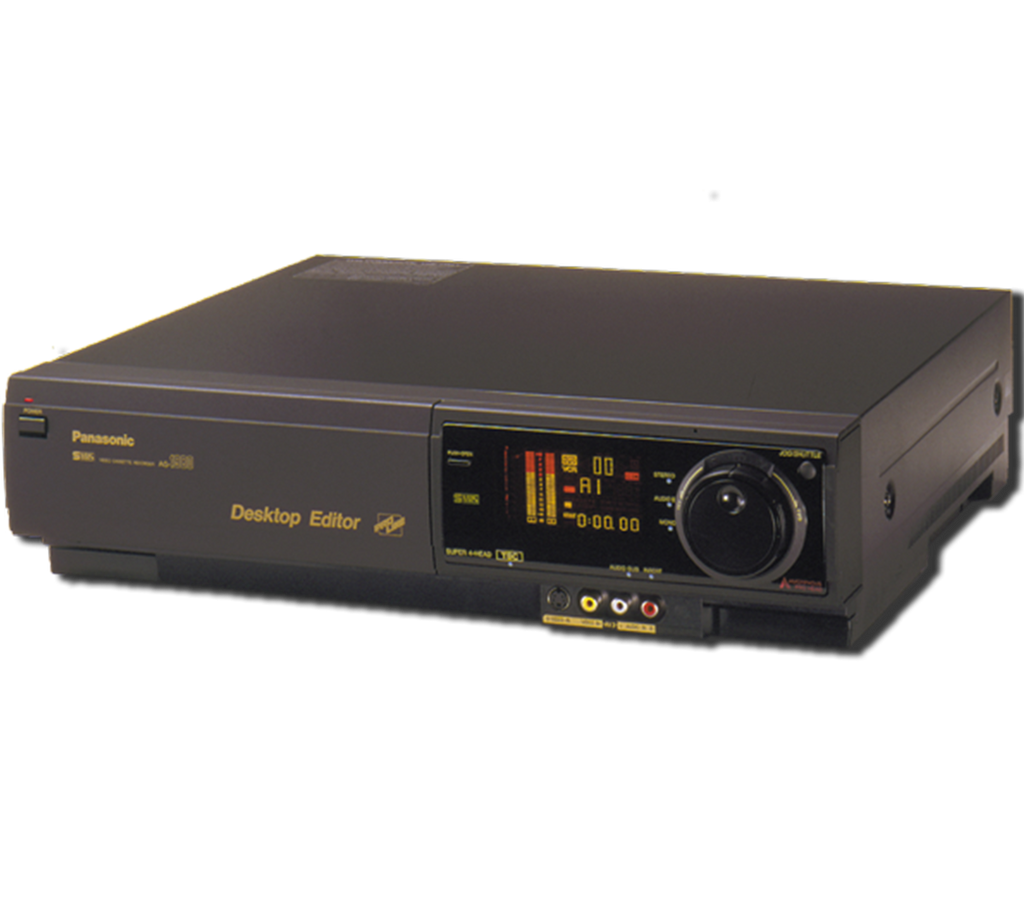

VCR
|
|
Video Recording System
|
2 rotary heads, helical scanning system
|
|
Video Heads
|
4 heads
|
|
Tape Speed
|
SP: 33.3mm/sec.
SLP: 11.1mm/sec.
|
|
Tape Format
|
S-VHS/VHS Tape
|
|
Record / Playback Time
|
SP: 120 min.
SLP: 360 min.
|
|
FF/ REW Time
|
Less than 3 min.
|
|
Video Horizontal Resolution
|
Color: more than 240 lines (VHS/SP)
more than 400 lines (S-VHS/SP)
|
|
Signal-to-Noise Ratio
|
Video: 44 dB (VHS/SP)
47 dB (S-VHS/SP)
|
|
Dynamic Range
|
Audio: 90 dB (Hi-Fi audio track)
|
|
Video
|
|
Television System
|
EIA; Standard (525 lines, 60 fields) NTSC Color
|
|
Modulation System
|
Luminance; FM azimuth recording
Color signal; converted subcarrier phase shift recording
|
|
Input Level
|
VIDEO IN
Front (PHONO): 1.0 Vp-p, 75 ohm
Rear (BNC):1.0 Vp-p, 75 ohm
S-VIDEO IN (4P DIN)
Y: 1.0 Vp-p, 75 ohm
C: 0.286 Vp-p, 75 ohm
|
|
Output Level
|
VIDEO OUT (BNC)
1.0 Vp-p. 75 ohm
S-VIDEO OUT (4P DIN):
Y: 1.0 Vp-p, 75 ohm
C: 0.286 Vp-p, 75 ohm
RF Modulated:
VHF Channel US 3 or 4, 75 ohm, terminated
|
|
Audio
|
|
Input Level
|
AUDIO IN (PHONO): -10 dBV, 47 kohm
MIC IN (MC x 1): -70 dBV, 4.7 kohm
|
|
Output Level
|
AUDIO OUT (PHONO): -8 dBV, 1 kohm
HEADPHONES: -60 – -30dBV, 8 ohm
|
|
Audio Track
|
1 track (Normal), 2 channels (Hi-Fi sound)
|
|
Audio Frequency Response
|
50 Hz - 10 kHz (Normal)
20 Hz - 20 kHz (Hi-Fi audio track)
|
|
General
|
|
Power Source
|
120 V AC, 50-60 Hz
|
|
Power Consumption
|
Approx. 33 watts
|
|
Operating Temperature
|
5°C - 40°C (41°F - 104°F)
|
|
Operating Humidity
|
35% - 80%
|
|
Weight
|
145/16 lbs. (6.5 kg)
|
|
Dimensions
|
1615/16" (W) x 43/8" (H) x 1415/16" (D)
(430 X 110 X 380 mm)
|
