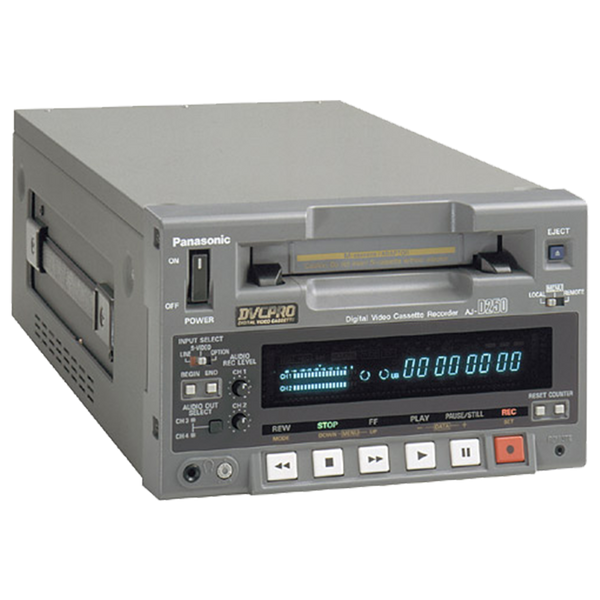

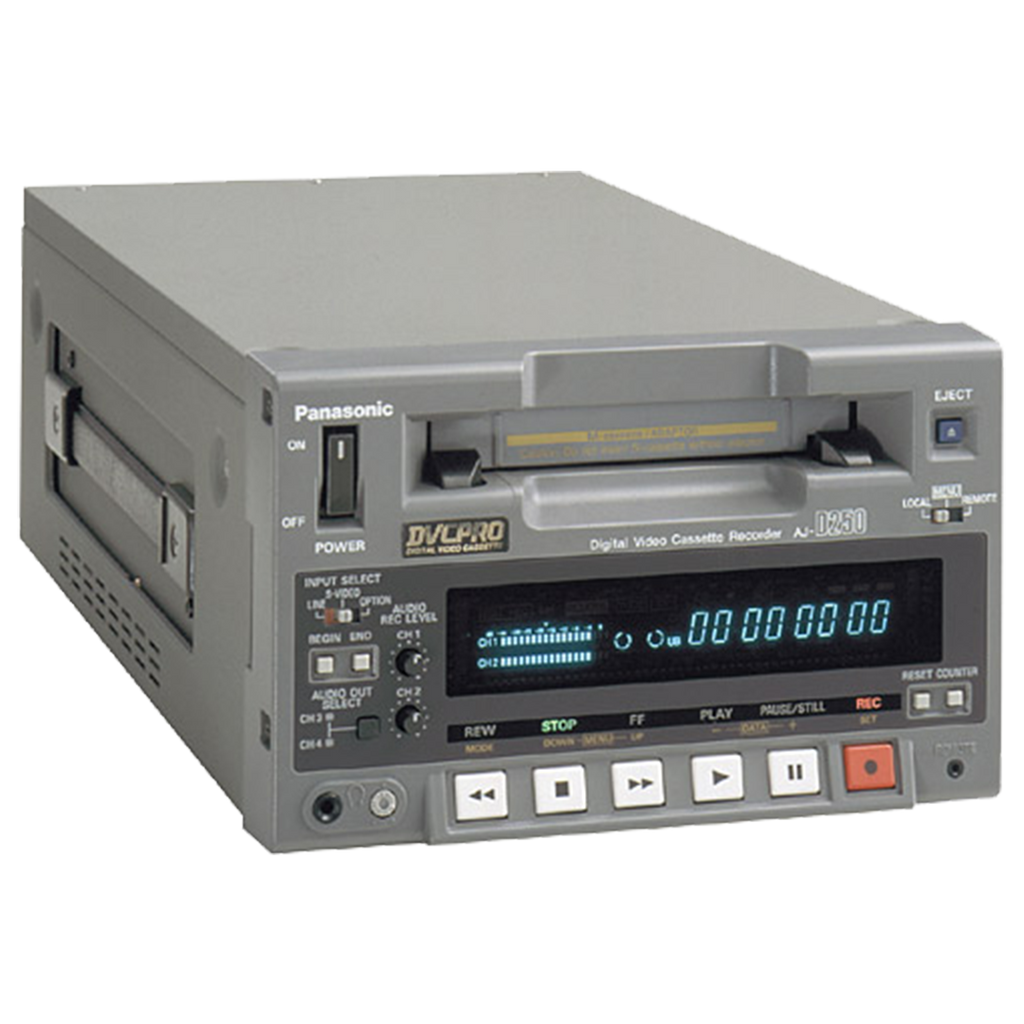

Panasonic DVCPro VTR - Video Recorder - Panasonic AJ-D250

The Panasonic AJ-D250 is a digital VTR which uses 1/4? wide tapes. The incorporation of digital compression technology ensures that the deterioration in picture and sound quality suffered during dubbing will be much less than with conventional analog systems. The model has a compact and lightweight design, enabling it to be readily carried about or easily installed in a rack.

The interactive system, which is featured for the unit’s settings, enables these settings to be performed while viewing the menus on the TV monitor screen.

• 184 Minute recording and playback capability
• Optional IEEE 1394 interface (AJ-YAD250)
• Superb digital component video source for insert and assemble editing
• Compact size (8-7/26" W x 5 ¼" H x 15 3/8" D)
• Mini-DV playback with AJ-CS750 (cassette adaptor)
• Rack mountable so two units can be mounted side-by-side in standard 19" rack
• Lightweight (14.3 lbs.) and portable with carrying handle
• External reference lock terminal
• Optional 9-pin RS-422A remote interface (AJ-YA250)
• On-screen set-up display
• Playback of DV format recordings (cannot playback Mini-DV cassettes recorded in LP mode)
• Input and output TBC
• Superb dubbing quality with S-VHS and component analog VCRs
• Built-in SMPTE time code generator/reader
• Two 16-bit audio channels with 48 kHz sampling
• One analog audio cue track

• Standard - NTSC
• Media Format - DVCPRO
• Sampling Frequency - Y: 13.5 MHz, Pb/Pr: 3.375 MHz
• Quantization - 8-bit
• Recording Format - DVCPRO 25 (480i)
• Playback Format - 480i
• Variable Speed Playback - No
• Audio - 2 channels, 48 kHz, 16-bit, RCA connections
• Analog Composite - 1 input (BNC), 1 output (BNC), 1 monitor (BNC)
• Analog Y/C (S-Video) - Input/Output, 4-pin
• IEEE 1394 Interface - Optional
• Remote Control Interface - RS-232 (standard), RS-422 (optional), wired remote control
• Timecode - SMPTE, T/C input/output (optional)
• DC Operation - No
• LCD Screen - No
• Jog/Shuttle Knob - No
