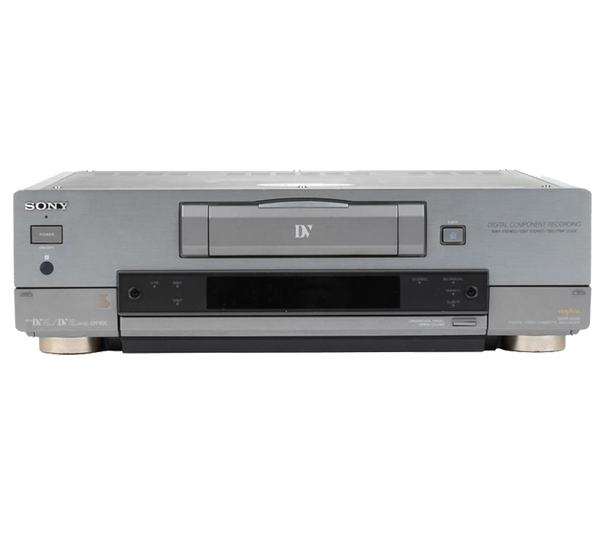

Sony DV VCR - Studio Player/Recorder- Sony DHR-1000

$ 989.99

Details

Description
Features
Specifications

The Sony DHR-1000 combines professional quality Video (over 500 lines of horizontal resolution) with a long list of advanced features. These include PCM Audio (12 or 16-bit), DV and Analog input/outputs, 10-segment Assemble Editor with edit window, removable editing tray, Jog/Shuttle dial, Mini and Standard DV cassette compatibility, TBC, Audio/Video Insert, Video on sound, Synchro edit, VCR Plus+, and a 181-channel cable-ready tuner with timer to offer unprecedented capabilities in a prosumer-class VCR.

DV format offers over 500 lines of horizontal resolution (three times the bandwidth of S-VHS VCRs) and high S/N ratio for stunning Video performance.
Digital Component Video recording dramatically improves color rendition and accuracy, while reducing color "smear".
PCM Digital Stereo Audio offers either: Two 12-bit/32k Hz stereo tracks for near CD sound quality, or one 16-bit/48k Hz stereo track for DAT quality recording.
Three-hour recording on standard DV-180, or one hour on Mini DV-60 cassettes.
Digital Comb filter separates Y/C for cleaner, sharper, more detailed images.
Built-in Time Base Correction for jitter-free Video performance.
Crystal-clear Freeze Frame and Variable Slow Motion (Forward and Reverse) Playback.
2x, 10x, 25x normal speed Playback for quick review, as well as 1/5x Slow Motion Playback.
12-bit or 16-bit PCM encoding for above CD quality with 96 dB dynamic range.
Built-in MTS stereo tuner receives stereo broadcasts
Audio level meters are provided for manual control of Record and Balance levels.
i.LINK (IEEE1394) DV Input/Output provides multiple generation dubs with virtually no loss in quality
On-board 10-segment Assemble Editor is enhanced with an edit window that provides a "Playback" window, and thumbnails of all cut-in/cut-out points for easy review of cuts.
Edit tray with Jog/Shuttle dial detaches from the deck for convenient placement. You can also control a camcorder equipped with Control L from the edit tray, via the DHR-1000's own Control L port
Video/Audio insert and Audio dubbing capability. In addition, Video On Sound (VOS) editing capability lets you replace Video without affecting original Audio.
Drop Frame Time Code for precise editing (compatible with RC Time Code formats).
Fine Synchro Edit provides A/B Preroll for improved accuracy when editing.
Whole Tape Copy automatically records all data (Video, Audio, Sub-Code data, etc.) with one DV cable and the touch of a button.
Compatible with Mini and Standard DV cassettes without the need for adapters.
Cassette Memory can display data pertaining to Search Mode on monitor screen.
Search Modes; by Index, Date or Photo
Cable Ready 181-channel MTS Tuner.
VCR Plus+ system makes setting VCR timer quick, easy and convenient.
8-event/1-month Timer with Quick Timer feature for one-touch recording
Cable Mouse Remote Repeater for unattended recordings of CATV or DSS broadcasts.
Auto Clock Set from Date and Time data found in broadcast TV (where available).
Camcorder-Friendly front panel inputs, in addition to rear panel inputs.
Supplied RMT-X1000A Wireless Remote Control features a Jog/Shuttle dial and selectable VCR modes: VCR
1/2/3/4/5/6
DV Input/Output Connector x 1 (front)
A/V Analog Outputs: S-Video, Phono x 2 (rear)
A/V Analog inputs: S-Video, Phono x 2 (front and rear)
RF Antenna In/Out: 75 ohm
Headphone Jack (with volume control): Stereo Mini Jack (front)
Control L (LANC): Stereo Mini-Mini Jack x 2 (front and rear)
Control S Input: Mono Mini Jack.

Signal System : NTSC
Format : Digital (Dv/Mini Dv) (Dvcam Playback Only)
Number Of Heads : 4 Head
Audio : Pcm Stereo 12 Bit 32 Khz 2 Stereo Tracks, Or 16 Bit 48 Khz 1 Stereo Track,Mts Stereo Tuner
Flying Erase Head : Yes
Audio Dub : Yes (12 Bit Mode)
Insert Editing : Yes (Video Or Audio Or Both)
(Random) Assemble Edit : Yes 10 Segment Assemble Editor
Synchro Edit : Yes W/ Control-L / Control-S / Dv Fire Wire
Time Code : Drop Frame Time Code, Compatible W/ Rc Time
Control Protocol : Yes Control-L (Lanc), Control-S
Time Base Corrector (Tbc) : Yes
Dv Ieee-(1394) Firewire : Yes
Line In Recording : Yes (S Video/ Composite/ Dv-Fire Wire)
Tape Counter : Yes
Jog/Shuttle : Yes Jog/Shuttle
Audio Level Meter : Yes
Manual Audio Level Cntrl : Yes (Also A Audio Mix Balance)
Slow Motion : Crystal Clear Freeze Frame, Slow Motion
Frame Advance : Frame By Frame
Manual Tracking : Yes
Vcr Plus : Yes
Cable Box Control : Yes
Program Timer Recording : Yes
Auto Repeat : No
Auto Tape Speed : No
Rec. Speeds : No
Playback Speeds : No
Commercial Advance/Skip : No
Front Audio/Video Input : Yes S Video/ Rca / Dv Fire Wire/ Lanc Line (2)
Back Audio/Video Input : 1 S Video 1 Rca And Control-S Line (1)
Back Audio/Video Output : 2 S Video 2 Rca And Control-S 1 X Lanc
Headphone Jack : Yes W/ Level Control Stereo (In Front)
Mic. Input : Yes W/ Audio Control Mini (In Front)
Index Search : Yes Or By Data Search
181 Channel Tuner : Yes
Dimensions (W/H/D) : 17"X 5 3/4"X 14 3/4"
Weight : 21 Lbs 5 Oz
Power Requirements : 23 Watts, Ac 120 Volts 60 Hz
Remote : Yes
Jog Shuttle O/R : Yes Jog/Shuttle Ring
Multi Brand Remote : Yes
Specialties :
- Photo Search
- Data Search
- Built In Tv Tuner
- Insert Editing
- Audio Dub
- Assemble Editing
- Manual Audio Level Control
- Mic Input
- Head- Phone Jack W/ Level Control
- A Built In Edit Board
