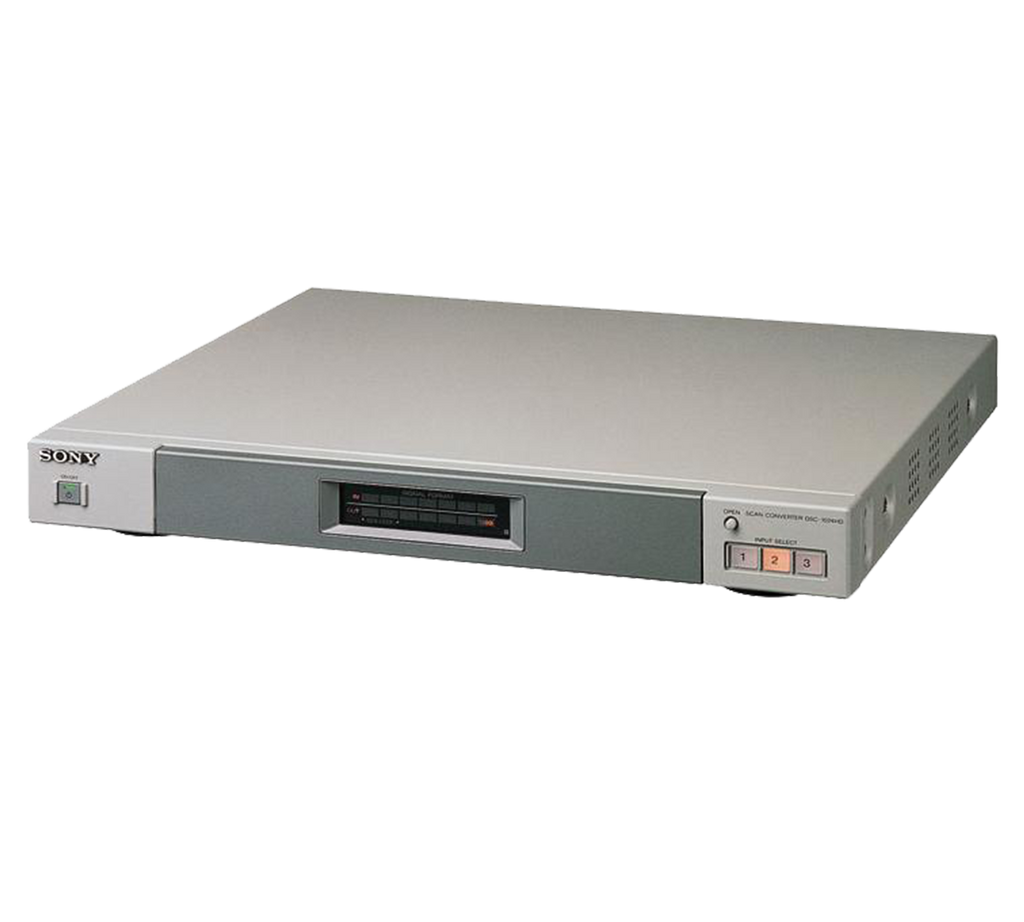

Sony Signal Converter - HD Standard Converter - Sony DSC-1024

Move your mouse over image or click to enlarge

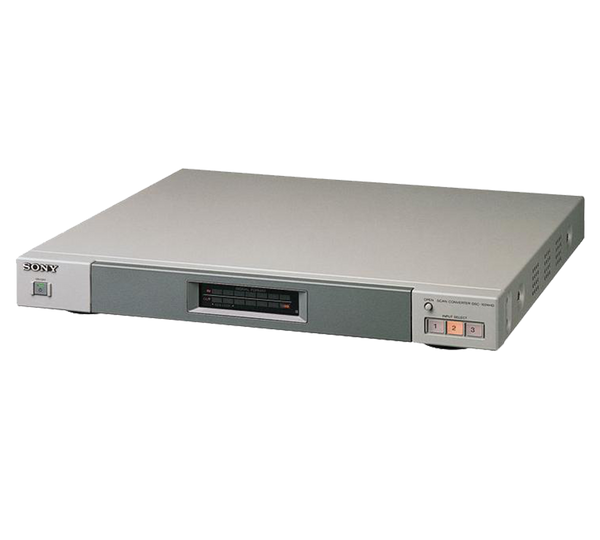

Sony Signal Converter - HD Standard Converter - Sony DSC-1024

$ 389.99

Details

Description
Specifications

The Sony DSC-1024HD Digital Scan Converter is the replacement for the DSC-1024G. The DSC-1024HD supports 1080i output formats as well as scan converts, transcodes, standard converts, aspect ratio converts, line doubles and signal processes. The DSC-1024HD has an added GENLOCK function which uses a black-burst signal applied as a genlock reference, so that the signal output can be synchronized to the reference.

Line doubler for standard video signal for home theaters or other large screen viewing.
Signal processor for up to a 4 x 4 video wall system.
Automatic input signal recognition
A more versatile scan converter for applications using monitors and front or rear projection in 16:9 or 4:3.
Allows for simultaneous connection of two computer signal sources.
Combines the use of four-line interpoliation to convert vertical scan lines with variable offset sampling for horizontal scan line, and is designed to lock onto and display images in various video formats.
Converts NTSC to PAL and PAL to NTSC.
Processing: 8-bit, 24-bit (RBG)
Interpolation Scheme: 4-field, 4-line
Remote Function: SIRCS
Composite Video Input: Composite video loop-through x 2, 75Ó(auto terminated), NTSC 3.58/PAL 4.43Vp-p
S-Video Input: 4-pin mini DIN loop-through x 2, 75Ó (auto terminated),Y: 1Vp-p negative sync C: 0.286Vp-p (NTSC)/0.3Vp-p (PAL) typical
RGB/Component Input: D-sub 15-pin, 3 row x 2 (loop-through), 75Ó /high impedanceR/G/B: +0.714Vp-p (sync on G/ext., switchable)Y/R-Y/B-Y: 0.7Vp-p typical (NTSC/PAL)
Audio Input: L/R, RCA jack, input impedance: more than 10kÓ 0dB (1 Vrms) max.
Composite Video Output: BNC, 75Ó typical, NTSC 3.58/PAL 4.43, 1Vp-p typical
S-Video Output: S Video: 4-pin mini DIN, 75Ó typicalY: 1Vp-p typical, negative syncC: 0.286Vp-p (NTSC)/0.3Vp-p (PAL) typical
RGB/Component Output: D-sub 15-pin, 3 row x 2 (loop-through), 75 Ó/high impedanceR/G/B: 0.714Vp-p with external syncY/B-Y/R-Y: 0.7Vp-p typical with sync on Y
Audio Output: Audio gain + 1.0dB typical, THD less than 1% @ 1 Vrms
Video Processing: Capture Range: H: 15.6-70kHz, V: 50-120Hz
Video Processing: Video Memory: 1152 x 1152 x 24 bits (RGB total)
Video Processing: Sampling Rate: 14.3-80MHz max
Video Processing: Pixel Clock: 14.3-50MHz max
Video Processing: Preset Signal: Input: 10 formatsOutput: 7 formats
Video Processing: Genlock: NTSC or PAL
Power Requirements: 100-120V, 50/60Hz, 0.5A max200-240V, 50/60Hz, 0.25A max
Power Consumption: 25 W (typical)
Operating Temperature: 50° -96°F (0° to 35°C)
Weight: Approximately 7.5 lbs (4kg)

Description

Specifications
- Line doubler for standard video signal for home theaters or other large screen viewing.
- Signal processor for up to a 4 x 4 video wall system.
- Automatic input signal recognition
- A more versatile scan converter for applications using monitors and front or rear projection in 16:9 or 4:3.
- Allows for simultaneous connection of two computer signal sources.
- Combines the use of four-line interpoliation to convert vertical scan lines with variable offset sampling for horizontal scan line, and is designed to lock onto and display images in various video formats.
- Converts NTSC to PAL and PAL to NTSC.
- Processing: 8-bit, 24-bit (RBG)
- Interpolation Scheme: 4-field, 4-line
- Remote Function: SIRCS
- Composite Video Input: Composite video loop-through x 2, 75Ó(auto terminated), NTSC 3.58/PAL 4.43Vp-p
- S-Video Input: 4-pin mini DIN loop-through x 2, 75Ó (auto terminated),Y: 1Vp-p negative sync C: 0.286Vp-p (NTSC)/0.3Vp-p (PAL) typical
- RGB/Component Input: D-sub 15-pin, 3 row x 2 (loop-through), 75Ó /high impedanceR/G/B: +0.714Vp-p (sync on G/ext., switchable)Y/R-Y/B-Y: 0.7Vp-p typical (NTSC/PAL)
- Audio Input: L/R, RCA jack, input impedance: more than 10kÓ 0dB (1 Vrms) max.
- Composite Video Output: BNC, 75Ó typical, NTSC 3.58/PAL 4.43, 1Vp-p typical
- S-Video Output: S Video: 4-pin mini DIN, 75Ó typicalY: 1Vp-p typical, negative syncC: 0.286Vp-p (NTSC)/0.3Vp-p (PAL) typical
- RGB/Component Output: D-sub 15-pin, 3 row x 2 (loop-through), 75 Ó/high impedanceR/G/B: 0.714Vp-p with external syncY/B-Y/R-Y: 0.7Vp-p typical with sync on Y
- Audio Output: Audio gain + 1.0dB typical, THD less than 1% @ 1 Vrms
- Video Processing: Capture Range: H: 15.6-70kHz, V: 50-120Hz
- Video Processing: Video Memory: 1152 x 1152 x 24 bits (RGB total)
- Video Processing: Sampling Rate: 14.3-80MHz max
- Video Processing: Pixel Clock: 14.3-50MHz max
- Video Processing: Preset Signal: Input: 10 formatsOutput: 7 formats
- Video Processing: Genlock: NTSC or PAL
- Power Requirements: 100-120V, 50/60Hz, 0.5A max200-240V, 50/60Hz, 0.25A max
- Power Consumption: 25 W (typical)
- Operating Temperature: 50° -96°F (0° to 35°C)
- Weight: Approximately 7.5 lbs (4kg)
